Product info

LIO-2 S

Capacity:

2kg

null

Contact

null

Technical Specifications

null

Accessories

null

Download PDF

Stainless steel AISI 304 chamber and exterior as standard

High end premium dry vacuum pump as standard

Touchscreen high resolution human machine interface

Vacuum control valve as standard

Sample temperature sensor as standard

Freeze drying via round flask

Technical description LIO-2 S

Technical Data:Lio-2 S
External dimension (WxDxH) in mm350 x 500 x 530 mm
Ice condenser capacity (max material)

2 kg

Ice condenser temperature (°C)– 45
Ice condenser defrostReverse refrigeration system less than 3 min
Number of shelves4
Shelf size (WxD) in mm120 x 400
Shelf surface0.05 m2 x 2 = 0,1 m2
Shelf spacing66 mm
Shelf heatingYES automatic
CoolingAir-cooled hermetic single compressor system
User interfaceTouchscreen high resolution
DoorFully transparent
Temperature probeShelf temperature, condenser temperature, material temperature and vacuum.
Web application view available!
Vacuum pump High-end premium dry vacuum pump
Power supply 230V / 50 Hz
Wattage (W)950
Mass ( kg)44 kg
Shipping box size mm450 x 600 x 700  (stackable !)
Premium dry vacuum pump for LIO-2 S
Freeze drying via round flask
LIO-2S trolley

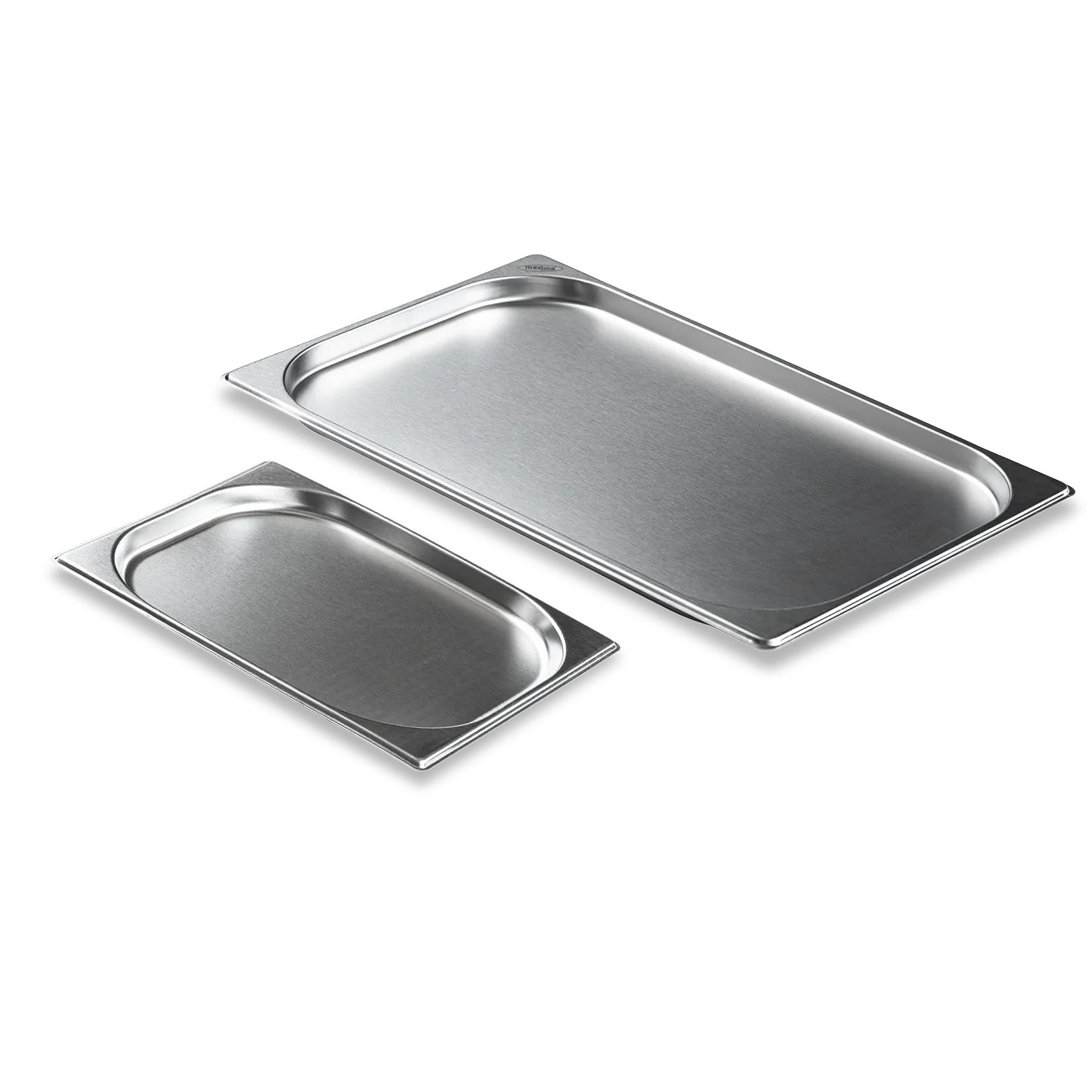

Stainless steel tray
Ice & water removal tool
Ice drip tray
